PVC Gauge Guards

Protect Your Pressure or Vacuum Instruments From Clogging, Corrosion and Damage!

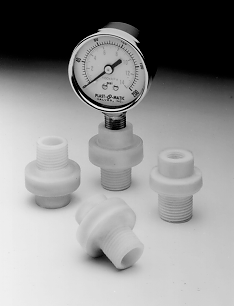

Gauge Guard Image We offer this high quality gauge guard with or without a pressure gauge. If you want to know the operating pressure of your system or any piece of equipment attached, it is highly recommended that you use a gauge guard.

If you get the unit without a pressure gauge you will need to use sterilized mineral oil to fill the gauge and gauge guard.

Features and Advantages:

Diaphragm Seals provide a protective barrier between process fluid and the pressure/vacuum gauge or instrument.
Prevents your gauges from clogging with calcium or other particulate.
Keeps your gauges from leaching copper into your aquarium water.
Compact size makes these isolators ideal for limited-space installations.
+-4% accuracy. Will handle most applications.
Simple to fill and install.
Hermetically-sealed unit-body construction - molded body avoids possibility of dangerous leaks.
For use with highly aggressive or ultra-pure liquids.
Diaphragm safety - If the gauge or instrument fractures or is removed from the guard while the system is pressurized, the diaphragm will automatically seal against leakage to the atmosphere.
Glass-filled Polypro bodies for excellent chemical compatibility and temperatures to 185 degrees F (85 degrees C).

Dimensions:


Note: We no longer have this product available for sale, but we are keeping this information available so you can see the best way to install a pressure gauge in your system. Please ask us if you have any questions about the use of gauge guards in your system. We are always happy to answer any questions you have!
